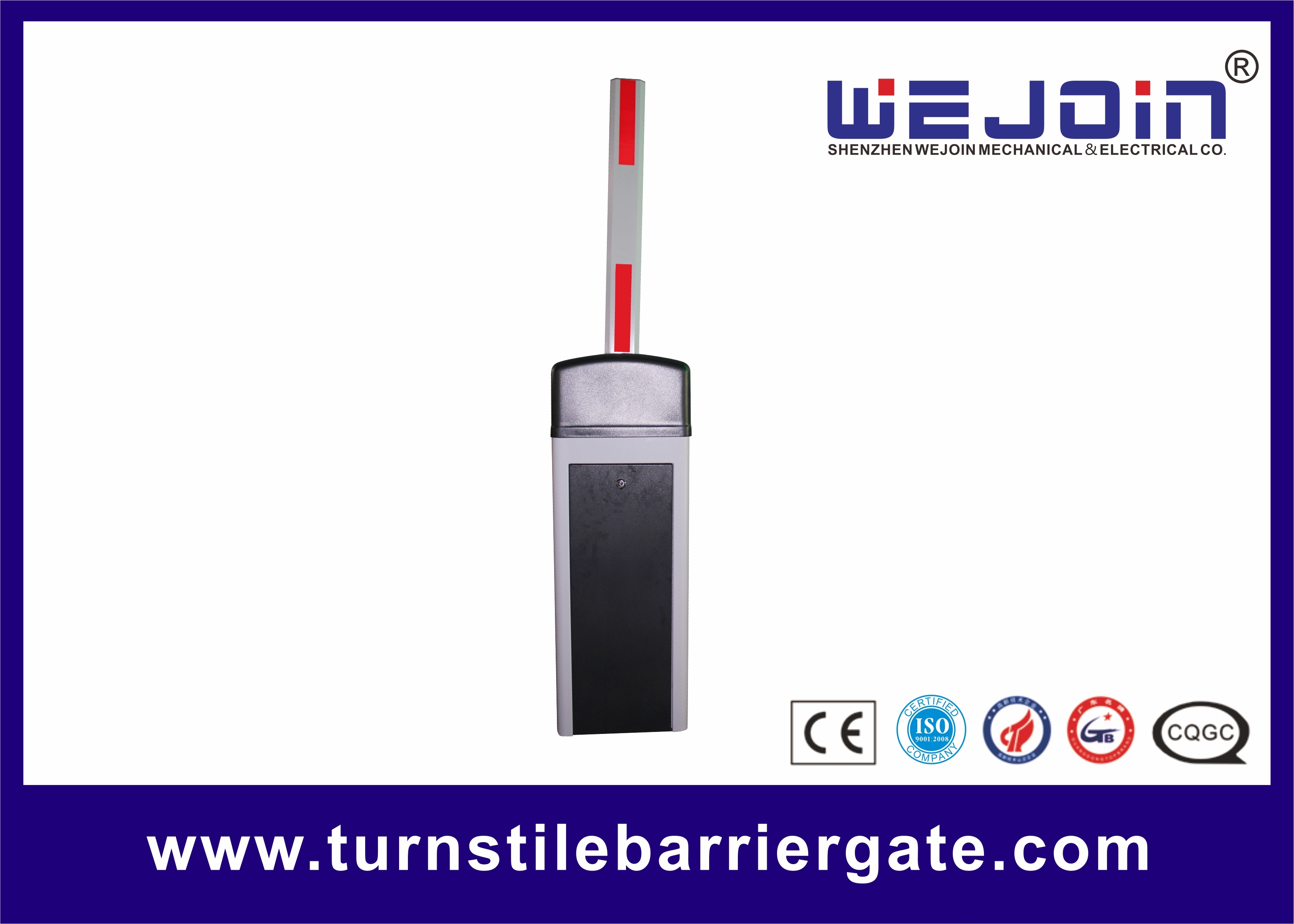

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface

1 σετ
MOQ
Διαπραγματεύσιμα
τιμή
DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Χαρακτηριστικό: Αυτόματη αντιστροφή στο εμπόδιο
Μοτέρ: DC24V Sturless κινητήρα
Ταχύτητα: 1.5S-6S
Εξουσία: 180W
Έκρηξη: Βραχίονα
Δυναμικό: AC100-265V
Επισημαίνω:

DC24V boom barrier gate

,

10A power supply boom barrier

,

RS485 interface boom gate

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: WEJOIN
Πιστοποίηση: CE ISO SGS
Αριθμό μοντέλου: DZ801
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο
Χρόνος παράδοσης: 15 εργάσιμες ημέρες μετά την παραλαβή της πληρωμής
Όροι πληρωμής: T/t
Δυνατότητα προσφοράς: 10000 σύνολα/μήνα
Περιγραφή προϊόντων

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface


Parking Barrier Gate Functional Features

1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.

2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.

4. support RS485 communication or RS485 folio online.

5. optional bluetooth module, convenient to debug anti-barrier door through small program.

6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.

8. 1.5~6 seconds adjustable speed of opening and closing.


Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screws, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the cabinet

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post



1

pc

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For the cabinet door

Remote Controller



2

pcs



Manual



1

pcs



Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”


Valid time of loop detector signal

In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.
