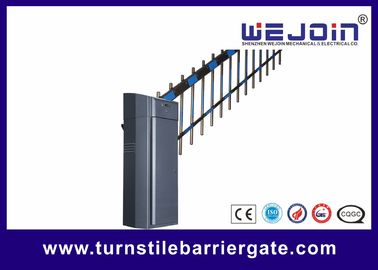

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom

1 σετ
MOQ
Διαπραγματεύσιμα
τιμή
10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Χρώμα στέγασης: Χρυσός, λωρίδες, μαύρο, σκούρο κίτρινο, jacinth
Έκρηξη: Έκρηξη φράχτη
Προαιρετική έκρηξη: Big Octagonal Boom, Swing Boom, Fence Boom, Square Boom, Foring Boom
Προαιρετικά αξεσουάρ: Ανιχνευτής βρόχου, φωτοκύτταρο υπέρυθρης ακτινοβολίας, διακόπτης κυκλώματος, υποστήριξη βραχίονα Adu
Επισημαίνω:

commercial car barrier gate with fence

,

vehicle barrier gates 10 million operations

,

parking barrier gate boom warranty

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: WEJOIN
Πιστοποίηση: CE ISO SGS
Αριθμό μοντέλου: WJCB101
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο
Χρόνος παράδοσης: 12 εργάσιμες ημέρες μετά την παραλαβή της πληρωμής
Όροι πληρωμής: T/T, Western Union
Δυνατότητα προσφοράς: 10000 σύνολα/μήνα
Περιγραφή προϊόντων

10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom


Independent designed and developed by WEJOIN,commercial variable frequency barrier has functions as following:

1. DC frequency conversion control motor drive, with a rod drive mechanism, balance spring, stable and reliable operation, the motor life of up to 6 million times or more.
2. The whole series is equipped with standard rebound function, when the boom is blocked in the process of falling, it will automatically rebound.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Interchangeable left and right direction.


Barrier Gate Parameter

1. Working Temperature (Motor): -35℃~ + 70℃
2. Power Supply Input Voltage: AC100~265V
3. Controller Input Voltage: DC24V±10%, 10A
4. Motor Power: 180W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of Remote Control: L≥30M
7. Running Speed:CB01VF-H 1~4 S;CB01VF-I 2~6 S
8. Enclosure Rating:IP54
9. MTBF:6,000,000 times
10. Max Boom Length:8M


Auto-open when power off

Sub-menu

Defaults

Range

Remarks

Low voltage actuation time

OFF

0-5000, 0 is OFF

The time when the voltage is lower than the set threshold and continues to exceed the threshold, it will turn on automatically.

Unit: millisecond.

Low voltage threshold

21

15-23

The operating voltage is lower than the threshold; unit: V.


Buffer Time for Boom from Closing to Opening

Pressing open button in the process of closing, this parameter is used to set the buffer time of the controller from receiving the command to starting to open.



Buffer Time of Barrier Gate Stopping

Pressing stop button in the process of barrier gate opening or closing, in order to make the barrier stop smoothly, set a buffer time. This time is the time from the barrier gate receiving the stop command to stopping completely.


10 Million Operating Times Commerrcial Car Barrier Gate Vehicle Barrier Gates with Fence Boom 0
